| Part | Material | Part | Material | |
|---|---|---|---|---|
| Body | Brass - Nickel-plated | Friction Washer | PTFE | |
| Ball | Brass - Chrome-plated | O-Ring | Nitrile butadiene rubber (NBR) | |
| Stem | Brass - Nickel-plated | Lever | A3 Steel Chrome-plated | |
| Seat | PTFE | Handle Nut | A3 Steel Chrome-plated |

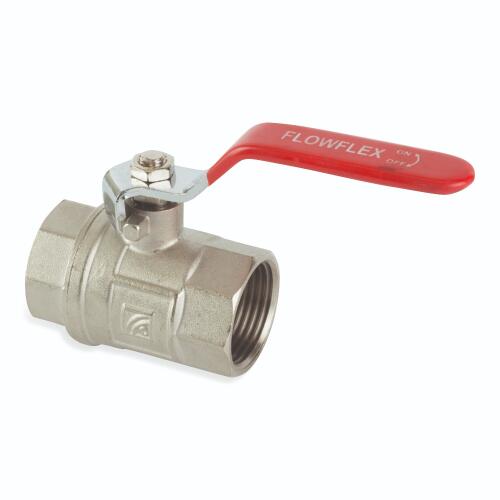

Lever Arm Female Ball Valve 811
Lever Arm Female Ball Valve 811
Product Code
811
Description
Lever Arm Female Ball Valve
Product Type
Ball Valve
Product Range
Variations
| Code | Designation | Mass (kg) | Bag Qty | Box Qty | Tariff Code |
|---|---|---|---|---|---|
| 8111 | 1/2" | 0.172 | 1 | 50 | 83071090 |
| 8112 | 3/4" | 0.261 | 1 | 50 | 83071090 |
| 8113 | 1" | 0.395 | 1 | 25 | 83071090 |
| 8114 | 1 1/4" | 0.24 | 2 | 10 | 83071090 |
| 8115 | 1 1/2" | 0.24 | 2 | 10 | 83071090 |
| 8116 | 2" | 0.24 | 2 | 10 | 83071090 |
| 8117 | 2 1/2" | 0.24 | 1 | 5 | 83071090 |
| 8118 | 3" | 0.24 | 1 | 5 | 83071090 |
| 8119 | 4" | 0.24 | 1 | 5 | 83071090 |
Material Specification
Flowflex reserve the right to alter the product ranges and specifications associated with its products without prior notice
