| Part | Material |
|---|---|
| Body | Brass CW617N Chrome-plated |
| Bushing | Brass CW614N |
| Press Cap | Brass CW614N |
| Handle | Zinc alloy Chrome-plated |
| Spindle Screw | Brass CW614N |
| Red / Blue Cap | ABS Plastic |
| Clip | Stainless Steel AISI 304 |
| Rosette | Stainless Steel AISI 304 |
| O Ring | N8118F Black coloured Nitrile (Acrylonitrile Butadiene) Shore hardness 80 in radius size 2.80mm |
| O Ring | N7118F Black coloured Nitrile (Acrylonitrile Butadiene) Shore hardness 70 in radius size 0.95mm |
| O Ring | N7118F Black coloured Nitrile (Acrylonitrile Butadiene) Shore hardness 70 in radius size 0.95mm |

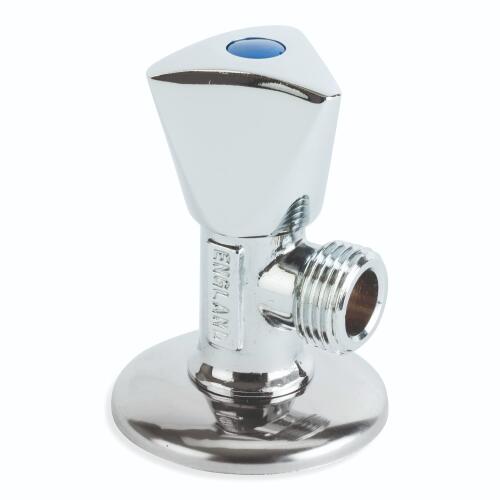

1/2" x 1/2" Chrome Angle Valve AV100
1/2" x 1/2" Chrome Angle Valve AV100
Product Code
AV100
Description
1/2" x 1/2" Chrome Angle Valve
Product Type
Angle Valve
Product Range
Variations
| Code | Designation | Mass (kg) | Bag Qty | Box Qty | Tariff Code |
|---|---|---|---|---|---|
| AV100.1 | 1/2" x 1/2" | 0.182 | 1 | 50 | 84818069 |
Material Specification
Flowflex reserve the right to alter the product ranges and specifications associated with its products without prior notice
