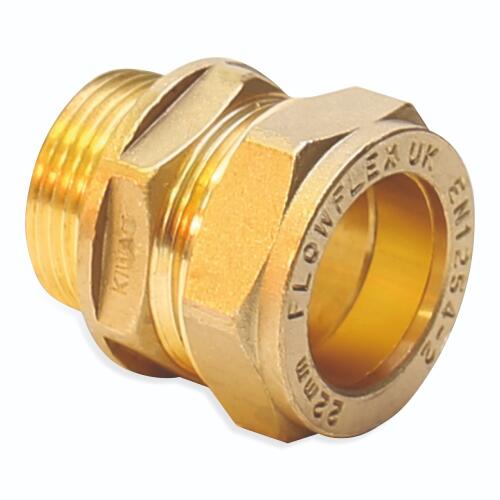

Compression Male Adaptor P902
Compression Male Adaptor P902
Product Code
P902
Description
Compression Male Adaptor
Product Type
Adaptor
Product Range
Variations
| Code | Designation | Mass (kg) | Bag Qty | Box Qty | Tariff Code |
|---|---|---|---|---|---|
| P902.01 | 6mm x 1/8" | 0.02425 | 20 | 300 | 74122000 |
| P902.02 | 6mm x 1/4" | 0.03145 | 20 | 300 | 74122000 |
| P902.021 | 6mm x 3/8" | 0.04325 | 20 | 300 | 74122000 |
| P902.03 | 8mm x 1/8" | 0.025 | 20 | 300 | 74122000 |
| P902.04 | 8mm x 1/4" | 0.0276 | 10 | 300 | 74122000 |
| P902.05 | 8mm x 3/8" | 0.0366 | 20 | 300 | 74122000 |
| P902.06 | 8mm x 1/2" | 0.0474 | 20 | 300 | 74122000 |
| P902.07 | 10mm x 1/4" | 0.03755 | 10 | 300 | 74122000 |
| P902.08 | 10mm x 3/8" | 0.04655 | 10 | 200 | 74122000 |
| P902.09 | 10mm x 1/2" | 0.05775 | 20 | 200 | 74122000 |
| P902.10 | 12mm x 1/4" | 0.03555 | 20 | 200 | 74122000 |
| P902.11 | 12mm x 3/8" | 0.03935 | 20 | 200 | 74122000 |
| P902.12 | 12mm x 1/2" | 0.05435 | 20 | 200 | 74122000 |
| P902.124 | 14mm x 3/8" | 0.056 | 20 | 200 | 74122000 |
| P902.126 | 14mm x 1/2" | 0.06485 | 20 | 200 | 74122000 |
| P902.13 | 15mm x 1/4" | 0.046 | 20 | 200 | 74122000 |
| P902.14 | 15mm x 3/8" | 0.0502 | 10 | 200 | 74122000 |
| P902.15 | 15mm x 1/2" | 0.0582 | 20 | 200 | 74122000 |
| P902.17 | 15mm x 3/4" | 0.085 | 20 | 200 | 74122000 |
| P902.173 | 15mm x 1" | 0.1938 | 20 | 100 | 74122000 |
| P902.176 | 16mm x 1/2" | 0.062 | 20 | 200 | 74122000 |
| P902.18 | 18mm x 1/2" | 0.09205 | 10 | 100 | 74122000 |
| P902.19 | 18mm x 3/4" | 0.09665 | 10 | 100 | 74122000 |
| P902.195 | 18mm x 1" | 0.13665 | 10 | 100 | 74122000 |
| P902.20 | 22mm x 1/2" | 0.09455 | 10 | 100 | 74122000 |
| P902.21 | 22mm x 3/4" | 0.09675 | 10 | 100 | 74122000 |
| P902.22 | 22mm x 1" | 0.13655 | 10 | 100 | 74122000 |
| P902.221 | 28mm x 3/4" | 0.13785 | 5 | 50 | 74122000 |
| P902.224 | 28mm x 1/2" | 0.13065 | 5 | 50 | 74122000 |
| P902.23 | 28mm x 1" | 0.13625 | 5 | 50 | 74122000 |
| P902.234 | 28mm x 1 1/4" | 0.23445 | 5 | 50 | 74122000 |
| P902.235 | 35mm x 1" | 0.2378 | 5 | 40 | 74122000 |
| P902.24 | 35mm x 1 1/4" | 0.249 | 5 | 50 | 74122000 |
| P902.25 | 42mm x 1 1/2" | 0.3195 | 5 | 50 | 74122000 |
| P902.26 | 54mm x 2" | 0.5044 | 2 | 20 | 74122000 |
| P902.27 | 67mm | 0.35 | 1 | 1 | 74122000 |
| P902.28 | 76mm | 2.39 | 1 | 1 | 74122000 |
| P902.29 | 108mm | 0.35 | 1 | 1 | 74122000 |
Flowflex reserve the right to alter the product ranges and specifications associated with its products without prior notice
