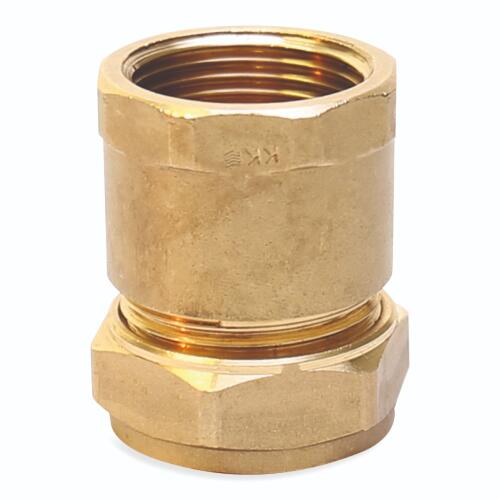

Compression Female Adaptor P903
Compression Female Adaptor P903
Product Code
P903
Description
Compression Female Adaptor
Product Type
Adaptor
Product Range
Variations
| Code | Designation | Mass (kg) | Bag Qty | Box Qty | Tariff Code |
|---|---|---|---|---|---|
| P903.001 | 6mm x 1/8" | 0.02725 | 20 | 300 | 74122000 |
| P903.002 | 6mm x 1/4" | 0.03725 | 20 | 300 | 74122000 |
| P903.003 | 8mm x 1/8" | 0.0266 | 20 | 300 | 74122000 |
| P903.01 | 8mm x 1/4" | 0.034 | 10 | 300 | 74122000 |
| P903.02 | 8mm x 3/8" | 0.042 | 20 | 300 | 74122000 |
| P903.03 | 8mm x 1/2" | 0.0436 | 20 | 300 | 74122000 |
| P903.04 | 10mm x 1/4" | 0.04455 | 10 | 200 | 74122000 |
| P903.05 | 10mm x 3/8" | 0.05375 | 20 | 200 | 74122000 |
| P903.06 | 10mm x 1/2" | 0.05315 | 10 | 200 | 74122000 |
| P903.07 | 12mm x 1/4" | 0.04055 | 20 | 200 | 74122000 |
| P903.08 | 12mm x 3/8" | 0.04975 | 20 | 200 | 74122000 |
| P903.09 | 12mm x 1/2" | 0.05155 | 20 | 200 | 74122000 |
| P903.096 | 14mm x 1/2" | 0.065 | 20 | 200 | 74122000 |
| P903.10 | 15mm x 1/4" | 0.0616 | 20 | 200 | 74122000 |
| P903.11 | 15mm x 3/8" | 0.0526 | 20 | 200 | 74122000 |
| P903.12 | 15mm x 1/2" | 0.0568 | 20 | 200 | 74122000 |
| P903.14 | 15mm x 3/4" | 0.0954 | 20 | 100 | 74122000 |
| P903.141 | 15mm x 1" | 0.1308 | 20 | 100 | 74122000 |
| P903.145 | 16mm x 1/2" | 0.057 | 20 | 200 | 74122000 |
| P903.146 | 16mm x 3/4" | 0.087 | 20 | 100 | 74122000 |
| P903.15 | 18mm x 1/2" | 0.03825 | 10 | 100 | 74122000 |
| P903.16 | 18mm x 3/4" | 0.10645 | 10 | 100 | 74122000 |
| P903.17 | 22mm x 1/2" | 0.10435 | 10 | 100 | 74122000 |
| P903.18 | 22mm x 3/4" | 0.11375 | 10 | 100 | 74122000 |
| P903.19 | 22mm x 1" | 0.14575 | 10 | 100 | 74122000 |
| P903.195 | 28mm x 3/4" | 0.21425 | 5 | 50 | 74122000 |
| P903.196 | 28mm x 1/2" | 0.15145 | 5 | 50 | 74122000 |
| P903.20 | 28mm x 1" | 0.15865 | 5 | 50 | 74122000 |
| P903.201 | 28mm x 1 1/4" | 0.22845 | 5 | 50 | 74122000 |
| P903.202 | 35mm x 1" | 0.3578 | 5 | 30 | 74122000 |
| P903.21 | 35mm x 1 1/4" | 0.2308 | 5 | 50 | 74122000 |
| P903.22 | 42mm x 1 1/2" | 0.3611 | 2 | 30 | 74122000 |
| P903.23 | 54mm x 2" | 0.4908 | 2 | 20 | 74122000 |
| P903.24 | 67mm | 1.74 | 1 | 5 | 74122000 |
| P903.25 | 76mm | 0.35 | 1 | 1 | 74122000 |
| P903.26 | 108mm | 0.35 | 1 | 1 | 74122000 |
Flowflex reserve the right to alter the product ranges and specifications associated with its products without prior notice
