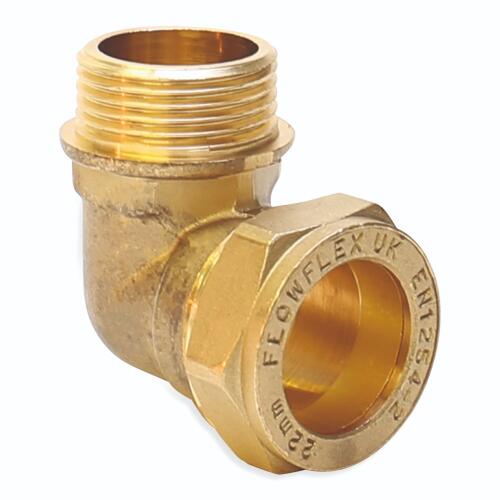

Compression Male Elbow P802
Compression Male Elbow P802
Product Code
P802
Description
Compression Male Elbow
Product Type
Elbow
Product Range
Variations
| Code | Designation | Mass (kg) | Bag Qty | Box Qty | Tariff Code |
|---|---|---|---|---|---|
| P802.002 | 6mm x 1/4" | 0.06025 | 20 | 300 | 74122000 |
| P802.01 | 8mm x 1/4" | 0.0308 | 20 | 300 | 74122000 |
| P802.02 | 10mm x 1/4" | 0.04695 | 20 | 200 | 74122000 |
| P802.03 | 10mm x 3/8" | 0.05915 | 20 | 200 | 74122000 |
| P802.031 | 10mm x 1/2" | 0.07275 | 20 | 200 | 74122000 |
| P802.04 | 12mm x 1/4" | 0.04955 | 20 | 200 | 74122000 |
| P802.05 | 12mm x 3/8" | 0.05555 | 20 | 200 | 74122000 |
| P802.051 | 12mm x 1/2" | 0.06995 | 20 | 200 | 74122000 |
| P802.055 | 14mm x 1/2" | 0.087 | 20 | 200 | 74122000 |
| P802.07 | 15mm x 3/8" | 0.0722 | 20 | 200 | 74122000 |
| P802.08 | 15mm x 1/2" | 0.0678 | 20 | 200 | 74122000 |
| P802.09 | 15mm x 3/4" | 0.0982 | 20 | 100 | 74122000 |
| P802.095 | 16mm x 1/2" | 0.061 | 20 | 200 | 74122000 |
| P802.10 | 18mm x 1/2" | 0.13245 | 10 | 100 | 74122000 |
| P802.105 | 18mm x 3/4" | 0.13925 | 10 | 100 | 74122000 |
| P802.11 | 22mm x 1/2" | 0.11755 | 10 | 100 | 74122000 |
| P802.12 | 22mm x 3/4" | 0.13215 | 10 | 100 | 74122000 |
| P802.13 | 22mm x 1" | 0.15875 | 10 | 100 | 74122000 |
| P802.14 | 28mm x 1" | 0.20105 | 5 | 50 | 74122000 |
| P802.141 | 28mm x 3/4" | 0.25445 | 5 | 50 | 74122000 |
| P802.15 | 35mm x 1 1/4" | 0.3068 | 5 | 20 | 74122000 |
| P802.16 | 42mm x 1 1/2" | 0.6411 | 2 | 20 | 74122000 |
| P802.17 | 54mm x 2" | 0.9074 | 1 | 10 | 74122000 |
| P802.18 | 67mm | 0.842 | 1 | 1 | 74122000 |
| P802.19 | 76mm | 0.842 | 1 | 10 | 74122000 |
Flowflex reserve the right to alter the product ranges and specifications associated with its products without prior notice
