611M: Press Isolation Valve Chrome Plated 'M' Profile

611M

Press Isolation Valve Chrome Plated 'M' Profile

The Flowflex Chrome Plated Press Isolation Valve is designed for quick, dependable installation in plumbing and heating systems. Suitable for use with ‘M’ profile press jaws, it enables a flame-free process with no need for flux, delivering a clean, high-quality finish. Featuring a durable chrome plated brass body, it ensures long-lasting performance with secure, easy-to-check joints, ideal for a range of applications.

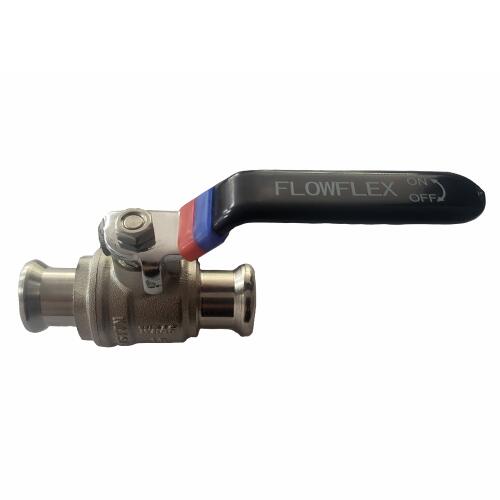

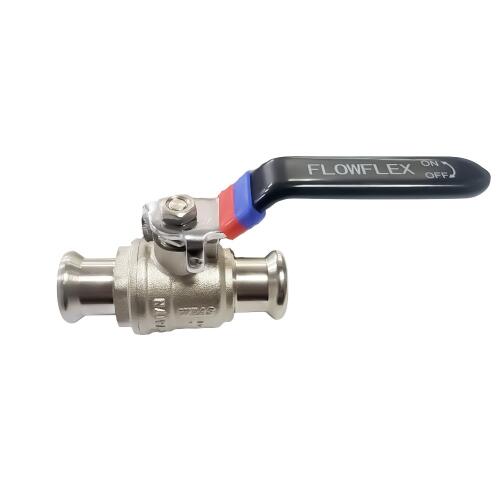

Press Isolation Valve

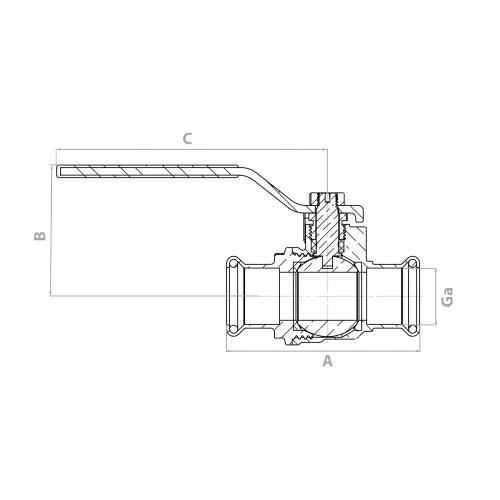

Press Isolation Valve Schematic

Specifications

The specifications section outlines the product’s construction, key features, and essential data, providing a clear overview of its quality and performance.

General
HS Code 8481808100
Handle Type Lever Arm
Handles Red and Blue
Operation Mechanism Quarter Turn
Pressure Rating (PN) 16
Product Code 611M
Product Ranges Press Valves

Variations

Our product variants come in different sizes to suit your needs, all with the same reliable specifications and performance. Choose the perfect fit without compromising on quality.

Code Description Mass (kg) Bag Qty Box Qty
6111M.15B 15mm Press Fit Ball Valve 0.19 1 60
6112M.22B 22mm Press Fit Ball Valve 0.31 1 30
6113M.28B 28mm Press Fit Ball Valve 0.49 1 20

Dimensions

Code A B C GA
6111M.15B 70 45 86 15.1
6112M.22B 77 53 114 22.1
6113M.28B 90.8 61 114 28.1

Product Ranges

This product forms part of the following product ranges. Flowflex categorises its products to ensures that each range supports specific technical requirements, making selection simpler and more efficient for our customers.

PVGS
Product Range

Press Valves

Flowflex Copper Press Valves – heat-free, fast installation, and built for any job. WRAS approved, available in 15mm to 28mm, delivering reliable, cost-effective performance every time.
