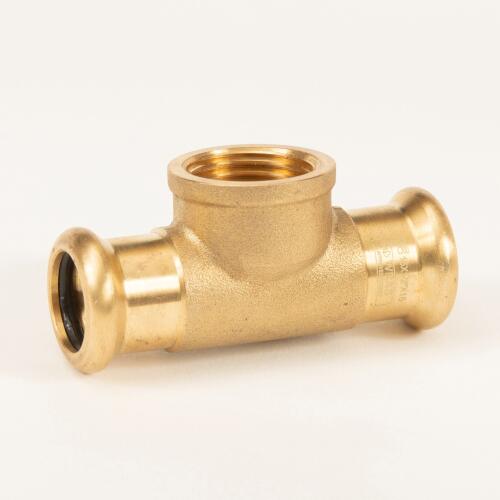

6130GM: Copper Press Female Tee
6130GM
Copper Press Female Tee
6130GM
Copper Press Female Tee
Specifications
The specifications section outlines the product’s construction, key features, and essential data, providing a clear overview of its quality and performance.
General
| HS Code | |
|---|---|
| Product Code | 6130GM |
| Product Ranges | Copper Press |
Variations
Our product variants come in different sizes to suit your needs, all with the same reliable specifications and performance. Choose the perfect fit without compromising on quality.
| Code | Description | Mass (kg) | Bag Qty | Box Qty |
|---|---|---|---|---|
| 6130GM.151215B | 15 x 15mm x 1/2" | 0.08 | 10 | 60 |
| 6130GM.221222B | 22 x 22mm x 1/2" | 0.11 | 10 | 40 |
| 6130GM.223422B | 22 x 22mm x 3/4" | 0.15 | 10 | 30 |
| 6130GM.281228B | 28 x 28mm x 1/2" | 0.16 | 10 | 30 |
| 6130GM.283428B | 28 x 28mm x 3/4" | 0.16 | 4 | 20 |
| 6130GM.351235B | 35 x 35mm x 1/2" | 0.23 | 4 | 16 |
| 6130GM.421242B | 42 x 42mm x 1/2" | 0.32 | 2 | 10 |
| 6130GM.541254B | 54 x 54mm x 1/2" | 0.42 | 1 | 6 |

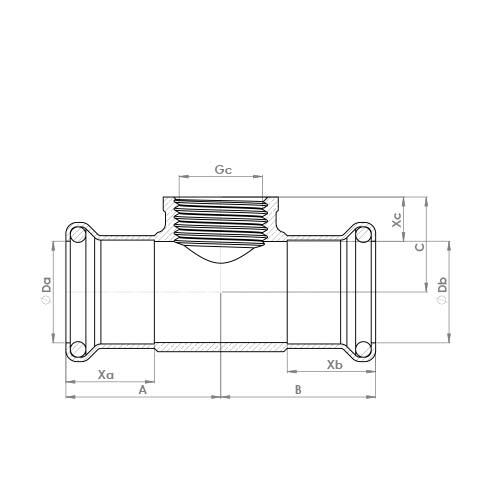

Dimensions
| Code | A | B | C | XA | XB | XC | DA | DB | GC |
|---|---|---|---|---|---|---|---|---|---|
| 6130GM.151215B | 31.5 | 31.5 | 19 | 20 | 20 | 12 | 15 | 15 | 1/2" |
| 6130GM.221222B | 35 | 35 | 22 | 22 | 22 | 11 | 22 | 22 | 1/2" |
| 6130GM.223422B | 39 | 39 | 27 | 22 | 22 | 15 | 22 | 22 | 3/4" |
| 6130GM.281228B | 38 | 38 | 28 | 23 | 23 | 13 | 28 | 28 | 1/2" |
| 6130GM.283428B | 41 | 41 | 26 | 23 | 23 | 12 | 28 | 28 | 3/4" |
| 6130GM.351235B | 45 | 45 | 32 | 26 | 26 | 14 | 35 | 35 | 1/2" |
| 6130GM.421242B | 51 | 51 | 36 | 30 | 30 | 14 | 42 | 42 | 1/2" |
| 6130GM.541254B | 56 | 56 | 42 | 35 | 35 | 13 | 54 | 54 | 1/2" |
Product Ranges
This product forms part of the following product ranges. Flowflex categorises its products to ensures that each range supports specific technical requirements, making selection simpler and more efficient for our customers.
Product Range
Copper Press
Flowflex Copper Press Fittings – heat-free, fast installation, and built for any job. WRAS approved, available in 15mm to 108mm, delivering reliable, cost-effective performance every time.
