6130RM: Copper Press Reduced Tee

6130RM

Copper Press Reduced Tee

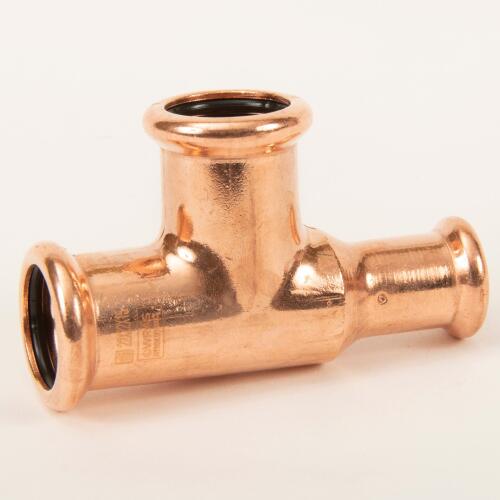

An image of the Flowflex Copper Press Reduced Tee, product code: 6130RM

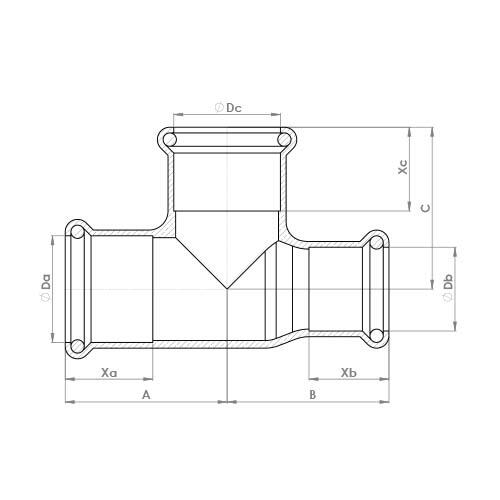

The technical schematic of the Flowflex Copper Press Reduced Tee, product code: 6130RM

Specifications

The specifications section outlines the product’s construction, key features, and essential data, providing a clear overview of its quality and performance.

General
HS Code
Product Code 6130RM
Product Ranges Copper Press

Variations

Our product variants come in different sizes to suit your needs, all with the same reliable specifications and performance. Choose the perfect fit without compromising on quality.

Code Description Mass (kg) Bag Qty Box Qty
6130RM.221515B 22 x 15 x 15mm 0.11 5 80
6130RM.221522B 22 x 22 x 15mm 0.12 5 80
6130RM.222215B 22 x 15 x 22mm 0.11 10 80
6130RM.281528B 28 x 28 x 15mm 0.15 5 50
6130RM.282222B 28 x 22 x 22mm 0.15 5 50
6130RM.282228B 28 x 28 x 22mm 0.17 5 50
6130RM.282822B 28 x 22 x 28mm 0.15 5 50
6130RM.351535B 35 x 35 x 15mm 0.17 5 30
6130RM.352235B 35 x 35 x 22mm 0.20 5 30
6130RM.352835B 35 x 35 x 28mm 0.22 5 30
6130RM.421542B 42 x 42 x 15mm 0.31 2 24
6130RM.422242B 42 x 42 x 22mm 0.33 2 24
6130RM.422842B 42 x 42 x 28mm 0.34 2 24
6130RM.423542B 42 x 42 x 35mm 0.36 2 20
6130RM.542254B 54 x 54 x 22mm 0.38 2 12
6130RM.542854B 54 x 54 x 28mm 0.43 2 12
6130RM.543554B 54 x 54 x 35mm 0.47 2 12
6130RM.544254B 54 x 54 x 35mm 0.53 2 10
6130RM.672867B 67 x 67 x 28mm 0.68 1 4
6130RM.673567B 67 x 67 x 35mm 0.74 1 4
6130RM.674267B 67 x 67 x 42mm 0.86 1 4
6130RM.675467B 67 x 67 x 54mm 0.91 1 4
6130RM.762276B 76 x 76 x 22mm 0.95 1 2
6130RM.762876B 76 x 76 x 28mm 1.02 1 2
6130RM.763576B 76 x 76 x 35mm 1.06 1 2
6130RM.764276B 76 x 76 x 42mm 1.18 1 2
6130RM.765476B 76 x 76 x 54mm 1.27 1 2
6130RM.766776B 76 x 76 x 67mm 1.36 1 2

Dimensions

Code A B C XA XB XC DA DB DC
6130RM.221515B 37 46 38 21 20 20 22 15 15
6130RM.221522B 33 33 31 21 21 20 22 22 15
6130RM.222215B 37 46.5 37 21 20 21 22 15 22
6130RM.281528B 42 42 40.5 23 23 20 28 28 15
6130RM.282222B 42 42.5 41 23 21 21 28 22 22
6130RM.282228B 42 46 42 23 21 23 28 28 22
6130RM.282822B 42 42 41 23 23 21 28 22 28
6130RM.351535B 45 45 44 26 26 20 35 35 15
6130RM.352235B 45 45 45 26 26 21 35 35 22
6130RM.352835B 50 50 44 26 26 23 35 35 28
6130RM.421542B 50 50 48 30 30 20 42 42 15
6130RM.422242B 50 50 48 30 30 21 42 42 22
6130RM.422842B 56 56 49 30 30 23 42 42 28
6130RM.423542B 56 56 50 30 30 26 42 42 35
6130RM.542254B 60 60 54 35 35 21 54 54 22
6130RM.542854B 60 60 55 35 35 23 54 54 28
6130RM.543554B 61 61 55 35 35 26 54 54 35
6130RM.544254B 69 69 64 35 35 30 54 54 35
6130RM.672867B 70 70 58 50 50 23 67 67 28
6130RM.673567B 74 74 61 50 50 26 67 67 35
6130RM.674267B 78 78 72 50 50 30 67 67 42
6130RM.675467B 83 83 75 50 50 35 67 67 54
6130RM.762276B 69 69 62 50 50 21 76 76 22
6130RM.762876B 74 74 65 50 50 23 76 76 28
6130RM.763576B 76 76 67 50 50 26 76 76 35
6130RM.764276B 80 80 80 50 50 30 76 76 42
6130RM.765476B 86 86 85 50 50 35 76 76 54
6130RM.766776B 91 91 89 50 50 50 76 76 67

Product Ranges

This product forms part of the following product ranges. Flowflex categorises its products to ensures that each range supports specific technical requirements, making selection simpler and more efficient for our customers.

Product Range

Copper Press

Flowflex Copper Press Fittings – heat-free, fast installation, and built for any job. WRAS approved, available in 15mm to 108mm, delivering reliable, cost-effective performance every time.
