6472BCPM: Press Fit Angled Isolating Valve 'M' Profile
6472BCPM

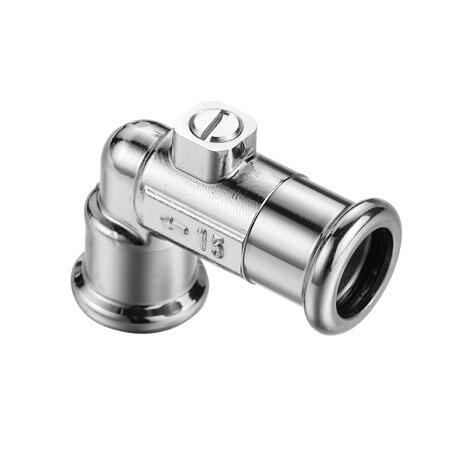

Press Fit Angled Isolating Valve 'M' Profile
The Flowflex Press Angled Isolating Valve is designed for fast, flame-free installation, this product uses ‘M’ profile press jaws to deliver a clean, professional finish without flux or hot works, while its durable CW617N brass body ensures long service life with consistent, easy-to-inspect joints; suitable for domestic and commercial water systems, it is WRAS approved, EN 1254-7 compliant, PN16 rated, operates from -20°C to 100°C, and features an EPDM seal.
6472BCPM
Press Fit Angled Isolating Valve 'M' Profile
The Flowflex Press Angled Isolating Valve is designed for fast, flame-free installation, this product uses ‘M’ profile press jaws to deliver a clean, professional finish without flux or hot works, while its durable CW617N brass body ensures long service life with consistent, easy-to-inspect joints; suitable for domestic and commercial water systems, it is WRAS approved, EN 1254-7 compliant, PN16 rated, operates from -20°C to 100°C, and features an EPDM seal.
Specifications
The specifications section outlines the product’s construction, key features, and essential data, providing a clear overview of its quality and performance.
General
| Applications | Commercial, Domestic |
|---|---|
| HS Code | 8481806999 |
| Max Working Temp (°C) | 100 |
| Min Working Temp (°C) | -20 |
| Pressure Rating (PN) | 16 |
| Product Code | 6472BCPM |
| Product Ranges | Press Valves |
Construction
| 1 | Body | CW617N (Chrome Plated Brass) |
|---|
Variations
Our product variants come in different sizes to suit your needs, all with the same reliable specifications and performance. Choose the perfect fit without compromising on quality.
| Code | Description | Mass (kg) | Bag Qty | Box Qty |
|---|---|---|---|---|
| 6472CPM.15B | 15mm Press Fit Angled Isolation Valve Chrome 'M' Profile | 0.08 | 16 | 120 |

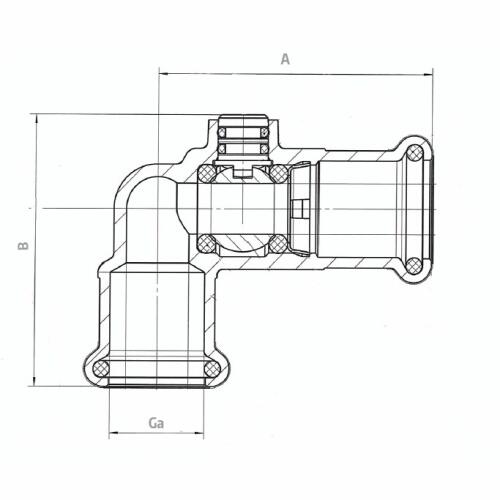

Dimensions
| Code | A | B | GA |
|---|---|---|---|
| 6472CPM.15B | 43.5 | 42.8 | 15.1 |
Product Ranges
This product forms part of the following product ranges. Flowflex categorises its products to ensures that each range supports specific technical requirements, making selection simpler and more efficient for our customers.
Product Range
Press Valves
