6472CPM: Press Fit Isolating Valve 'M' Profile
6472CPM
Press Fit Isolating Valve 'M' Profile
Designed for efficient, flame-free installation, this product uses ‘M’ profile press jaws to create secure joints without the need for flux or hot works, delivering a clean, professional finish; its durable CW617N brass construction ensures long-lasting performance with consistent, easily inspectable connections, and it is suitable for domestic and commercial water systems, being WRAS approved, EN 1254-7 compliant, PN16 rated, operating from -20°C to 100°C, and fitted with an EPDM seal.
6472CPM
Press Fit Isolating Valve 'M' Profile
Designed for efficient, flame-free installation, this product uses ‘M’ profile press jaws to create secure joints without the need for flux or hot works, delivering a clean, professional finish; its durable CW617N brass construction ensures long-lasting performance with consistent, easily inspectable connections, and it is suitable for domestic and commercial water systems, being WRAS approved, EN 1254-7 compliant, PN16 rated, operating from -20°C to 100°C, and fitted with an EPDM seal.
Specifications
The specifications section outlines the product’s construction, key features, and essential data, providing a clear overview of its quality and performance.
General
| Applications | Commercial, Domestic |
|---|---|
| Approvals | WRAS |
| HS Code | 8481806999 |
| Max Working Temp (°C) | 100 |
| Min Working Temp (°C) | -20 |
| Pressure Rating (PN) | 16 |
| Product Code | 6472CPM |
| Product Ranges | Press Valves |
Construction
| 1 | Body | CW617N (Chrome Plated Brass) |
|---|
Variations
Our product variants come in different sizes to suit your needs, all with the same reliable specifications and performance. Choose the perfect fit without compromising on quality.
| Code | Description | Mass (kg) | Bag Qty | Box Qty |
|---|---|---|---|---|
| 6472CPM.15B | 15mm Press Fit Isolating Valve Chrome 'M' Profile | 0.07 | 25 | 200 |
| 6472CPM.22B | 22mm Press Fit Isolating Valve Chrome 'M' Profile | 0.13 | 12 | 96 |

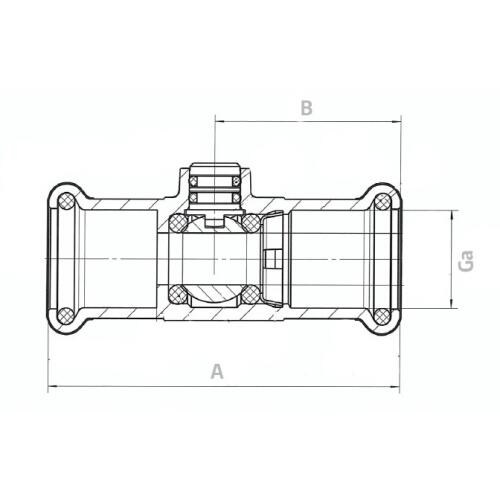

Dimensions
| Code | A | B | GA |
|---|---|---|---|
| 6472CPM.15B | 55 | 29 | 15.1 |
| 6472CPM.22B | 68 | 32 | 22.1 |
Product Ranges
This product forms part of the following product ranges. Flowflex categorises its products to ensures that each range supports specific technical requirements, making selection simpler and more efficient for our customers.
Product Range
Press Valves
