AV105: 1/2" x 3/8" (with 10mm nut) Chrome Angle Valve
AV105
1/2" x 3/8" (with 10mm nut) Chrome Angle Valve

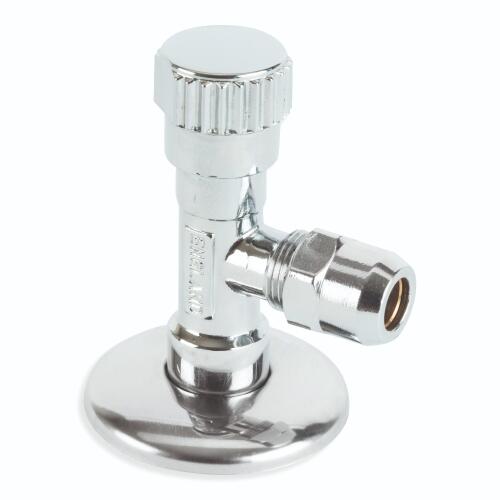

The Flowflex AV105 Chrome Angle Valve is designed for isolating sanitary products like taps and toilets in bathrooms. It features a sleek handle and comes with an optional compression cap, allowing connection to 3/8" tap connections or 10mm copper pipe. Made from chrome-plated brass, it ensures durability and reliability with a pressure rating of PN10 and a temperature range of -20°C to 100°C. Ideal for hot and cold water systems, it combines both style and versatility for all installations.
AV105
1/2" x 3/8" (with 10mm nut) Chrome Angle Valve
The Flowflex AV105 Chrome Angle Valve is designed for isolating sanitary products like taps and toilets in bathrooms. It features a sleek handle and comes with an optional compression cap, allowing connection to 3/8" tap connections or 10mm copper pipe. Made from chrome-plated brass, it ensures durability and reliability with a pressure rating of PN10 and a temperature range of -20°C to 100°C. Ideal for hot and cold water systems, it combines both style and versatility for all installations.
Specifications
The specifications section outlines the product’s construction, key features, and essential data, providing a clear overview of its quality and performance.
General
| Approvals | WRAS |
|---|---|
| Combines With | BS EN 1057 |
| Connects Using | ISO 228-1, BS EN 1254-2 |
| HS Code | 84818069 |
| Max Working Temp (°C) | 100°C |
| Min Working Temp (°C) | -20°C |
| Pressure Rating (PN) | PN10 |
| Product Code | AV105 |
| Product Ranges | Angle Valves |
| Warranty | 5 Years |
Construction
| 1 | Body | CW617N (Chrome Plated Brass) |
|---|---|---|
| 2 | Bushing | CW614N (Brass) |
| 3 | Press Cap | CW617N (Brass) |
| 4 | Handle | CW617N (Chrome Plated Brass) |
| 5 | Spindle Screw | CW614N (Brass) |
| 6 | Rosette | Chrome Plated Steel (General) |
Variations
Our product variants come in different sizes to suit your needs, all with the same reliable specifications and performance. Choose the perfect fit without compromising on quality.
| Code | Description | Mass (kg) | Bag Qty | Box Qty |
|---|---|---|---|---|
| AV105.1 | 1/2" x 3/8" | 0.13 | 1 | 50 |
Product Ranges
This product forms part of the following product ranges. Flowflex categorises its products to ensures that each range supports specific technical requirements, making selection simpler and more efficient for our customers.
Product Range
Angle Valves
