AV106: 1/2" x 1/2" Chrome Angle Valve
AV106
1/2" x 1/2" Chrome Angle Valve

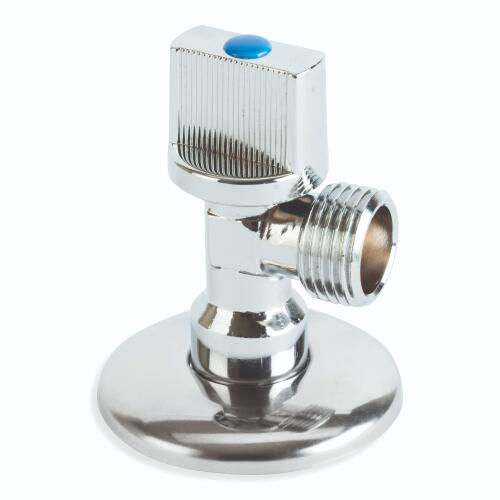

The Flowflex AV106 is a compact and economical chrome angle valve designed for isolating sanitary outlets such as taps and toilets. Its smaller size makes it a practical and cost-effective choice for various plumbing installations. Made from durable chrome-plated brass, it operates with a pressure rating of PN10 and can handle temperatures ranging from -20°C to 100°C, making it ideal for both hot and cold water systems.
AV106
1/2" x 1/2" Chrome Angle Valve
The Flowflex AV106 is a compact and economical chrome angle valve designed for isolating sanitary outlets such as taps and toilets. Its smaller size makes it a practical and cost-effective choice for various plumbing installations. Made from durable chrome-plated brass, it operates with a pressure rating of PN10 and can handle temperatures ranging from -20°C to 100°C, making it ideal for both hot and cold water systems.
Specifications
The specifications section outlines the product’s construction, key features, and essential data, providing a clear overview of its quality and performance.
General
| Approvals | WRAS |
|---|---|
| Connects Using | ISO 228-1 |
| HS Code | 84818069 |
| Hot/Cold Indicator | Yes |
| Max Working Temp (°C) | 100°C |
| Min Working Temp (°C) | -20°C |
| Pressure Rating (PN) | PN10 |
| Product Code | AV106 |
| Product Ranges | Angle Valves |
| Warranty | 5 Years |
Construction
| 1 | Body | CW617N (Chrome Plated Brass) |
|---|---|---|
| 2 | Bushing | CW614N (Brass) |
| 3 | Press Cap | CW617N (Brass) |
| 4 | Handle | CW617N (Chrome Plated Brass) |
| 5 | Spindle Screw | CW614N (Brass) |
| 6 | Rosette | Chrome Plated Steel (General) |
Variations
Our product variants come in different sizes to suit your needs, all with the same reliable specifications and performance. Choose the perfect fit without compromising on quality.
| Code | Description | Mass (kg) | Bag Qty | Box Qty |
|---|---|---|---|---|
| AV106.1 | 1/2" x 1/2" | 0.09 | 1 | 80 |
Product Ranges
This product forms part of the following product ranges. Flowflex categorises its products to ensures that each range supports specific technical requirements, making selection simpler and more efficient for our customers.
Product Range
Angle Valves
