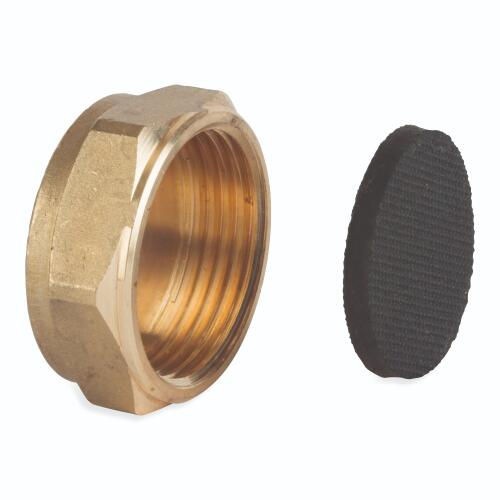

P163B: Blank Nut With Washer
P163B
Blank Nut With Washer
P163B
Blank Nut With Washer
Specifications
The specifications section outlines the product’s construction, key features, and essential data, providing a clear overview of its quality and performance.
General
| Applications | Aria Compressa, Combustibili Liquidi, Commerciale, Domestico, Gas Combustibile, Gas Domestico a Bassa Pressione secondo EN 1775, Impianti di Riscaldamento, Industriale, Servizi di Acqua Calda, Servizi di Acqua Fredda, Servizi di Combustibile, Servizi di Protezione Antincendio secondo EN 12845, Sistemi di Acqua Refrigerata |
|---|---|
| Assortimenti | |
| HS Code | 74122000 |
| Product Code | P163B |
Variations
Our product variants come in different sizes to suit your needs, all with the same reliable specifications and performance. Choose the perfect fit without compromising on quality.
| Code | Description | Mass (kg) | Bag Qty | Box Qty |
|---|---|---|---|---|
| P163B.03 | 10mm | 0.02 | 20 | 300 |
| P163B.035 | 12mm | 0.02 | 20 | 300 |
| P163B.07 | 42mm | 0.18 | 5 | 25 |
| P163B.08 | 54mm | 0.31 | 5 | 25 |
| P163B.71 | 35mm | 0.18 | 10 | 50 |
| P163B.8 | 28mm | 0.06 | 20 | 200 |
Working Conditions
These working conditions outline the specific temperatures and pressures required for the product to perform reliably, ensuring optimal functionality, safety, and long-term durability.
All working conditions assume that the components have been assembled and connected correctly, and adhere to their respective tube compatibility.
If you are planning to use our products in applications outside the scope of our recommendations, approval must be sought from us beforehand. Please contact us in these cases.
Working Conditions for use with Liquidi
| Temperature (°C) | Pressure (bar) |
|---|---|
| 15mm ≤ 28mm | |
| 30 | 16 |
| 65 | 13 |
| 95 | 10 |
| 28mm ≤ 54mm | |
| 30 | 16 |
| 65 | 10 |
| 95 | 7 |
| 6mm ≤ 15mm | |
| 30 | 25 |
| 65 | 25 |
| 95 | 16 |
Working Conditions for use with Gas Combustibile
| Temperature (°C) | Pressure (bar) |
|---|---|
| 6mm ≤ 54mm | |
| -20 | 5 |
| 70 | 1 |
| 70 | 0 |
Working Conditions for use with Aria Compressa
| Temperature (°C) | Pressure (bar) |
|---|---|
| 6mm ≤ 28mm | |
| 0 | 10 |
| 40 | 10 |
| 40 | 0 |
