| Part | Material | Part | Material | |
|---|---|---|---|---|
| Body | Bronze CC491KK | Handwheel | Aluminium | |
| Bonnet | Bronze CC491KK | Press Nut | Brass CW614N | |
| Stem | Brass CW614N | Name Plate | Aluminium | |
| Board | Bronze CC491KK | Nut | Brass CW614N | |
| Lock Nut | Brass CW614N | Brass Ring | Brass CW614N | |
| Sealing | PTFE | Plastic Ring | PTFE |

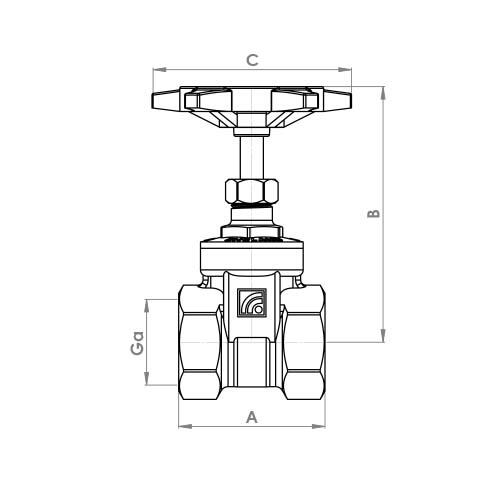

Female Bronze Gate Valve L196
Female Bronze Gate Valve L196
Product Code
L196
Description
Female Bronze Gate Valve
Product Type
Gate Valve
Product Range
Variations
| Code | Designation | Mass (kg) | Bag Qty | Box Qty | Tariff Code |
|---|---|---|---|---|---|
| L196.1 | 1/2" | 0.239 | 1 | 120 | 84818069 |
| L196.2 | 3/4" | 0.323 | 1 | 84 | 84818069 |
| L196.3 | 1" | 0.494 | 1 | 48 | 84818069 |
| L196.4 | 1 1/4" | 0.718 | 1 | 24 | 84818069 |
| L196.5 | 1 1/2" | 0.979 | 1 | 18 | 84818069 |
| L196.6 | 2" | 1.56 | 1 | 5 | 84818069 |
| L196.7 | 2 1/2" | - | 1 | 5 | 84818069 |
| L196.8 | 3" | - | 1 | 1 | 84818069 |
| L196.9 | 4" | - | 1 | 1 | 84818069 |
Material Specification
Flowflex reserve the right to alter the product ranges and specifications associated with its products without prior notice
